ELECTRICAL, COMPONENTS 2 para POLARIS SLINGSHOT / SL / SLR de 2017

ELECTRICAL, COMPONENTS 2

1

SWITCH-COMBINATION

4016028

4017580

No disponible

2

SCREW SOCHD M5X16

7516610

7,98€ Precio unitario con IVA

3

ECM-MEFI NO START GM

12654117

12679057

No disponible

4

BRKT-ECU MOUNT

5450280

9999999

No disponible

5

SCR-HXFLGHD M6X30

7518147

8,23€ Precio unitario con IVA

6

EXPANSION CLIP; 6 MM

7081304

12,36€ Precio unitario con IVA

7

BUTTON HEAD HEX SCREW 6MM X 1.0MM X 15MM

7519774

7,98€ Precio unitario con IVA

8

FUSIBLE CABLE; 12 AWG

4016249

No disponible

9

ROUTING CLIP

7081496

8,23€ Precio unitario con IVA

10

STARTER CABLE; 4AWG

4016576

No disponible

10

CABLE-STARTER 4AWG

4015851

No disponible

11

KIT-BATTERY BOLT

2202802

7,98€ Precio unitario con IVA

12

GROUND CABLE 4AWG

4015852

4080438

No disponible

13

BATTERY 30 AMP HOUR TYPE AGM

4014609

219,06€ Precio unitario con IVA

14

MNT-BKT-BATTERY

5263633

9999999

No disponible

14

MNT-BKT-BATTERY

5263224

9999999

No disponible

15

HEX FLANGE SCREW; 6 MM X 1.0 MM X 12 MM

7519145

7,98€ Precio unitario con IVA

16

CABLE-GROUND ENGINE 4AWG

4015853

No disponible

17

PAD-BATTERY

5814368

No disponible

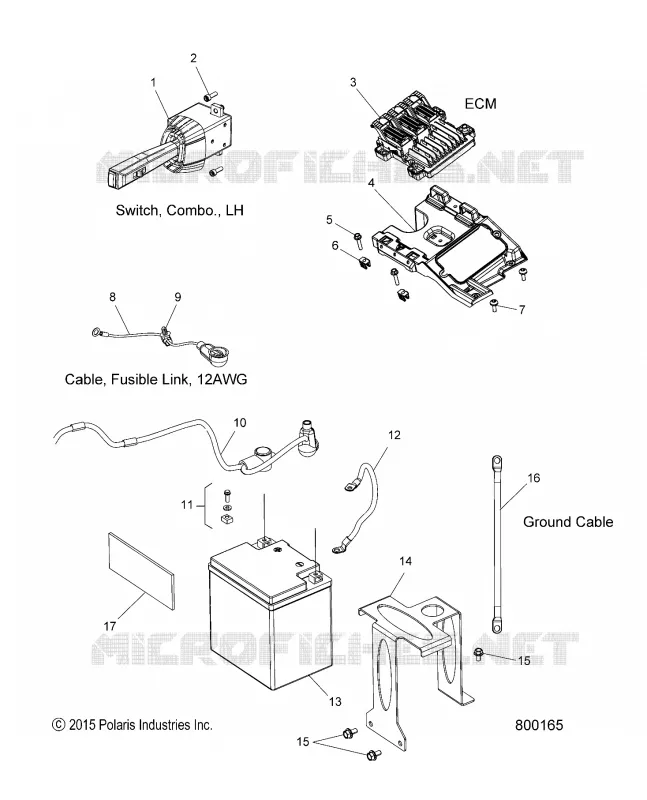

En esta página encontrará el esquema detallado ELECTRICAL, COMPONENTS 2 POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.

Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
