ENGINE, CULATA, CAMS AND VALVES para POLARIS SPORTSMAN 570 EPS de 2023

ENGINE, CULATA, CAMS AND VALVES

1

ASM-CYLINDER HEAD;1 CYL;MACH

3023692

924,04€ Precio unitario con IVA

2

EXHAUST CAMSHAFT ASSEMBLY

3023632

267,74€ Precio unitario con IVA

3

ASM-DECOMP SYSTEM;LH

1205100

1209426

No disponible

4

INTAKE VALVE; STEEL; G-90

3022134

3022884

39,76€ Precio unitario con IVA

5

GASKET-CYL HEAD

5814089

2206222

81,76€ Precio unitario con IVA

6

PIN-DOWEL M6X10

7662436

13,12€ Precio unitario con IVA

7

SCR-HXFL-M6X1.0X35 10.9 P&O

7520460

8,23€ Precio unitario con IVA

8

SCR-HXFL M6X1.0X70 10.9

7521244

14,30€ Precio unitario con IVA

9

DOWEL-HOLLOW M8X8

7662437

35,78€ Precio unitario con IVA

10

VALVE TAPPET; GRADED 5.175

5138477518

No disponible

10

VALVE TAPPET; GRADED; 5.250

5138477525

No disponible

10

GRADED VALVE TAPPET; 5.300

5138477530

No disponible

10

GRADED VALVE TAPPET; 5.150

5138477515

No disponible

10

GRADED VALVE TAPPET; 5.100

5138477510

No disponible

10

GRADED VALVE TAPPET; 5.450

5138477545

No disponible

10

TAPPET-VALVE GRADED 4.625 ANVRSY GLD MET

5138477462

No disponible

10

VALVE TAPPET; GRADED 4.600

5138477460

No disponible

10

VALVE TAPPET; GRADED 4.650

5138477465

No disponible

10

VALVE TAPPET; GRADED 4.825

5138477482

No disponible

10

VALVE TAPPET; GRADED; 5.375

5138477538

No disponible

10

GRADED VALVE TAPPET; 4.450

5138477445

No disponible

10

GRADED VALVE TAPPET; 5.200

5138477520

No disponible

10

GRADED VALVE TAPPET; 4.475

5138477448

No disponible

10

VALVE TAPPET; GRADED 4.950

5138477495

No disponible

10

VALVE TAPPET 4.925MM; DELTA GREEN

5138477492

No disponible

10

VALVE TAPPET; GRADED 4.725

5138477472

No disponible

10

VALVE TAPPET; GRADED

5138477505

No disponible

10

VALVE TAPPET; GRADED; 4.575

5138477458

No disponible

10

GRADED VALVE TAPPET; 5.125

5138477512

No disponible

10

GRADED VALVE TAPPET; 4.525

5138477452

No disponible

10

GRADED VALVE TAPPET; 5.350

5138477535

No disponible

10

VALVE TAPPET; GRADED; 5.275

5138477528

No disponible

10

VALVE TAPPET; GRADED; 4.5

5138477450

No disponible

10

VALVE TAPPET 4.55MM

5138477455

No disponible

10

GRADED VALVE TAPPET; 5.075

5138477508

No disponible

10

VALVE TAPPET; GRADED; 5.325

5138477532

No disponible

10

VALVE TAPPET; GRADED 4.850

5138477485

No disponible

10

VALVE TAPPET 4.4MM GLS BLK W/ MCH HGHLTS

5138477440

No disponible

10

GRADED VALVE TAPPET; 5.425

5138477542

No disponible

10

VALVE TAPPET; GRADED 4.875

5138477488

No disponible

10

VALVE TAPPET

5138477500

No disponible

10

VALVE TAPPET; GRADED; 5.225

5138477522

No disponible

10

VALVE TAPPET 4.975MM; SB GRN MTLC

5138477498

No disponible

10

VALVE TAPPET; GRADED 4.70; COLOR

5138477470

No disponible

10

GRADED VALVE TAPPET; 5.025

5138477502

No disponible

10

GRADED VALVE TAPPET; 5.400

5138477540

No disponible

10

VALVE TAPPET; GRADED 4.800

5138477480

No disponible

10

VALVE TAPPET; GRADED 4.675

5138477468

No disponible

10

VALVE TAPPET; GRADED 4.750; COLOR

5138477475

No disponible

10

VALVE TAPPET; GRADED 4.775

5138477478

No disponible

10

VALVE TAPPET; GRADED; 4.425

5138477442

No disponible

10

VALVE TAPPET; GRADED 4.900

5138477490

No disponible

11

CAMSHAFT-INTAKE MACH

3023626

374,84€ Precio unitario con IVA

12

EXHAUST VALVE

3022349

3022883

109,01€ Precio unitario con IVA

13

VALVE SPRING SEAT WITH SEAL

3610212

3024576

10,98€ Precio unitario con IVA

14

RETAINER VALVE

5138435

31,80€ Precio unitario con IVA

15

RING-SNAP EXT 23MM

7710653

6,38€ Precio unitario con IVA

16

VALVE SPRING

7045006

7046204

18,31€ Precio unitario con IVA

16

SPRING-VALVE

7045876

7046204

18,31€ Precio unitario con IVA

17

VALVE KEEPER

7081470

8,51€ Precio unitario con IVA

18

SCREW

7519153

9,61€ Precio unitario con IVA

19

BOLT HEAD

7520144

20,27€ Precio unitario con IVA

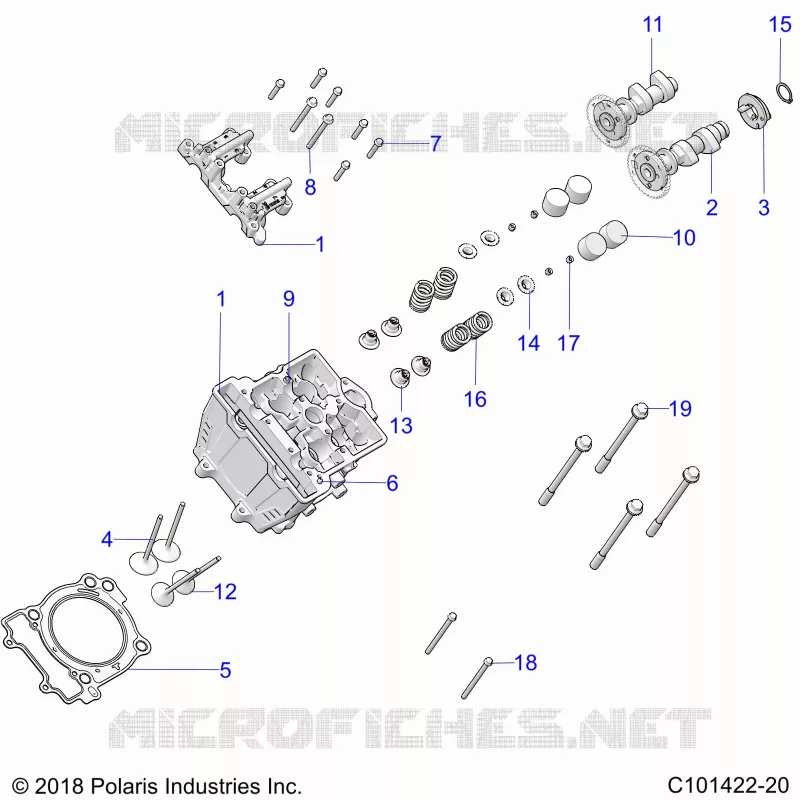

En esta página encontrará el esquema detallado ENGINE, CULATA, CAMS AND VALVES POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.

Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
